What Is a MPLS Network?
Discover the technology and advantages of Multi-Protocol Label Switching networks.

You hear a lot about MPLS networks as a means of linking multiple business locations. But just what is MPLS and why it is better than other network topologies?

What is MPLS?
MPLS stands for Multi-Protocol Label Switching. It’s a completely different technology from what you may be familiar with in the way of either circuit switched or packet switched networks. You can transport IP traffic on an MPLS network but it does not use IP routing.

Advantages of MPLS Networks
The beauty of MPLS networks is that they can transport nearly any protocol without having to do any protocol conversions to fit into the structure of the network. MPLS networks also offer a high degree of security because of their unique technology and because they are privately run networks available only to their customers. Quality of service is designed-in, which makes MPLS a good fit with enterprise VoIP and other latency sensitive applications.

How MPLS Works
Here’s a brief description of how MPLS works. You connect to the network “cloud” through a special device called a label edge router or LER. Since you are entering, this LER is an ingress router. At ingress, your packets are each encapsulated by adding a MPLS label to them. That label defines a FEC or forwarding equivalence class that determines where the packet is to be sent. As packets traverse the network, Label switching routers (LSR) look only at the label and not the internals of the packet to determine how to route them. At the destination, the labels are removed by a LER that functions as an egress router. The packet now exits the network looking exactly as it did upon entering.

The Label System Makes It VPN
It’s the use of the labels that makes MPLS unique and inherently more secure than, say, the Internet. Someone who found a way to snoop on the data traversing the MPLS network would be completely flummoxed since they would not have knowledge of labels used on that particular network. It’s far fetched that you’d have access to MPLS network data at all, since it does not traverse public networks. For this reason, MPLS networks are also called MPLS VPN. If you want even more security than this, you can encrypt your packets as well as transport them on an MPLS VPN.

Supports Quality of Service
MPLS networks support quality of service through the label technology and careful network engineering. The labels have a 3 bit traffic class field that designates quality of service, priority and explicit congestion notification. The network operator has the responsibility of ensuring there is adequate bandwidth to accommodate all customers. MPLS networks are designed for mesh networking, although they can also be set up as point to point connections to link two locations only.

Access Connections for Ethernet Transport
With the move to Carrier Ethernet, MPLS networks are a natural for interconnecting large numbers of sites on a national or even international basis. Each site needs an access connection, which can be Ethernet over Copper or Ethernet over Fiber, depending on bandwidth requirements. The MPLS network will transport the Ethernet packets without changing them. This way you have an end to end Ethernet network without having to maintain a long haul network yourself. The transparency of MPLS lets you establish layer 2 switched connections if you desire them.

The Cost Advantage of The Cloud
Economy of scale makes MPLS networks very cost effective for inter-state or international connections. You’ll have the quality of service you expect with dedicated line services along with the flexibility of a “cloud” that can accommodate additional site connections or increased bandwidth requirements easily.

Cloud Networking Plus Instant Line Service Quotes
Get the best pricing on cloud computing infrastructure, platform and software as a service, cloud communications, cloud based contact centers, cloud storage and network connectivity solutions for private and public cloud services. Most wireline and Ethernet fiber services to 1 Gbps display prices instantly online. Other services quoted promptly to your requirements. Use this handy form...

ENTER YOUR INFORMATION:

Service Type *

Contact Name: *

Business Name: *

Contact’s Email Address: *

Installation Phone Number (area code first): * () -

You may call a Telarus bandwidth consultant toll free anytime at 1-866-436-7868 and mention Reference #: 129701 to get our best cloud computing, communications, storage, and network service prices, for business and organizational locations only. Sorry, no residential service available.

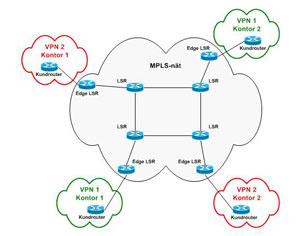

Note: MPLS network diagram courtesy of Wikimedia Commons.
